Deskripsi Produk Deskripsi

Detail AXELSON ESP Pilot - High Low Pressure Sensor

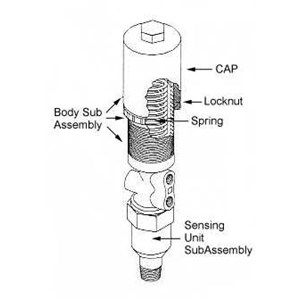

AXELSON ESP Pilot - High Low Pressure Sensor

The Axelson ESP Pressure Sensor is a highly accurate and reliable device designed to detect an abnormal operating condition in a safety system and transmit a signal to perform a specific shutdown function.

The Pressure Sensor or pilot is a 3-way block and bleed valve that is controlled by a piston and spring.

It is used to sense predetermined pressure and, when that pressure is reached, shift the 3-way valve.

The actuation point is easy to adjust by turning the adjustment cap. This changes the spring force. Turning the cap clockwise will increase the pressure setting. Turning the cap counter clockwise will decrease the pressure setting.

The sensor may be used to detect high pressure or a low-pressure conditions by connecting the input instrument pressure to the appropriate port. When connected to either port the remaining port becomes the exhaust port.
